We produces and sells 8x1-40x4 monochrome character modules, including YG (yellow green mode), B (blue mode), FSTN(gray mode),DFSTN (black&white mode) and other display modes. You can choose Eglish,Japanese, Russian, European and other font SPI, parallel ports and I2C Iinterface modes.We accept the development and customization of dot matrix COB module products with different specifications. The products meet the environmental protection requirements and ROHS standards, and are widely used in all kinds of digital character instruments and meters and industrial control displays.

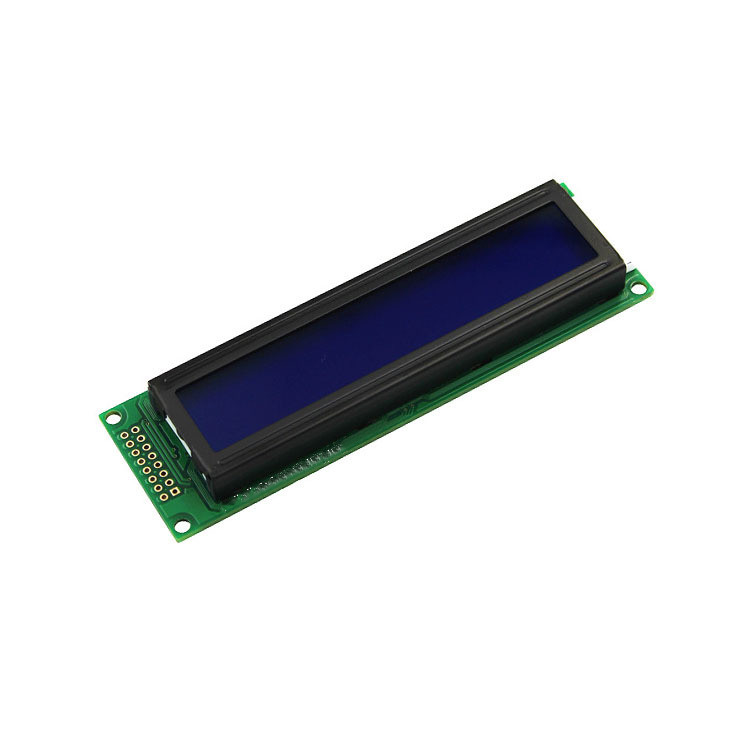

LCD Type

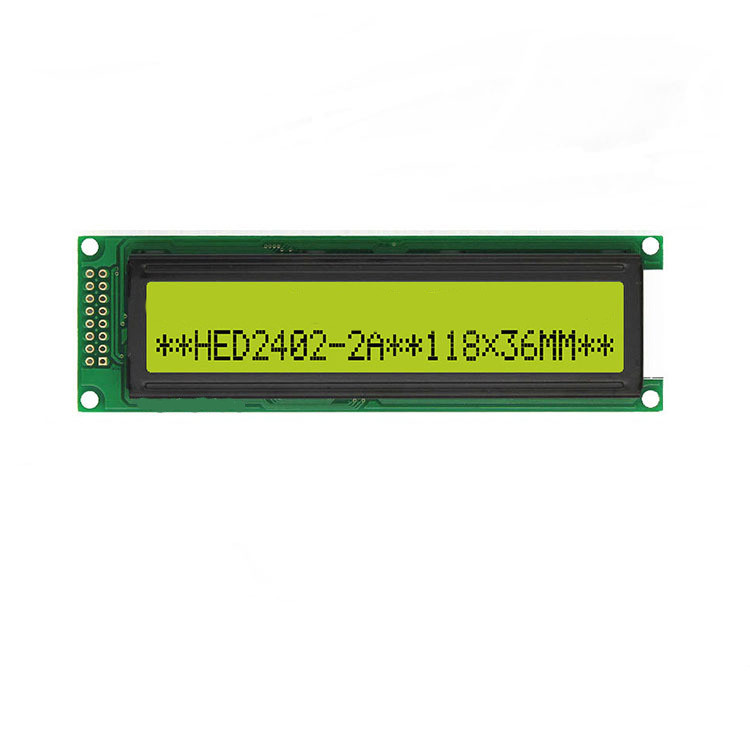

Outline Dimension
118(W) × 36.0(H) × 13.5(T) (MAX)mm
Visual Area
93.5(W) × 15.8(H)mm
Active Area
88.30(W) × 11.50(H)mm
Character Size
3.20(W) × 5.55(H)mm
Dot Size
0.60×0.65mm
Dot Pitch
0.05mm
Polarizer Type
Transmissive
Display format
24 Characters x 2 Line

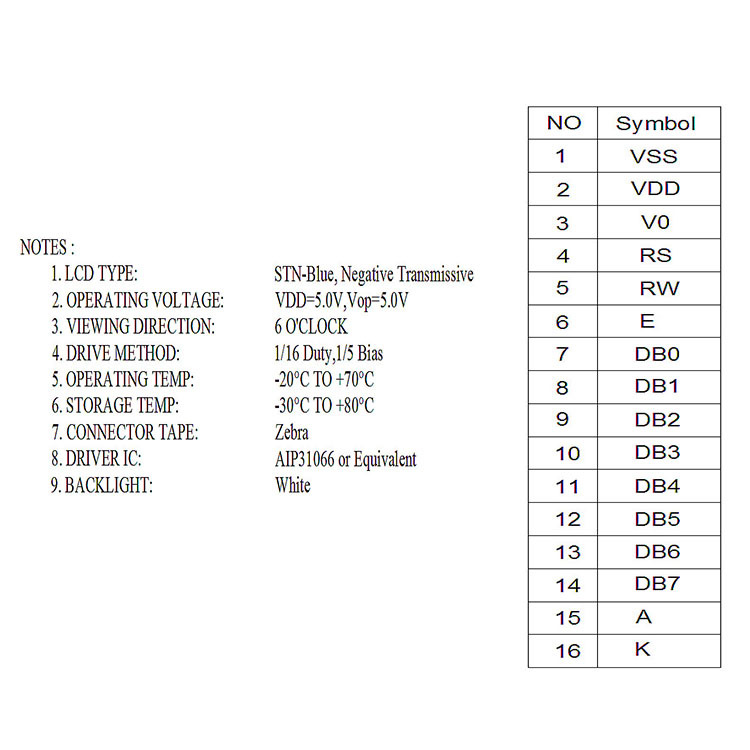

Display Connector
Pin Header,16 Pins
Driving voltage
factory setting:5.0V (Optional:3.3V)
Driving method
1/16Duty,1/5Bias
Operating Temperature
-20 ~ +70℃
Storage Temperature
-30 ~ +80℃
Viewing Direction
6:00:00
Back lighting
Side LED,Color Refer to 1.display mode
IC Package
COB
Controller
AIP31066 or Equivalent
Interface
6800 8-bit Parallel, 6800 4-bit Parallel
