40X2 Character Display

Products Details

We produces and sells 8x1-40x4 monochrome character modules, including YG (yellow green mode), B (blue mode), FSTN(gray mode),DFSTN (black&white mode) and other display modes. You can choose Eglish,Japanese, Russian, European and other font SPI, parallel ports and I2C Iinterface modes.We accept the development and customization of dot matrix COB module products with different specifications. The products meet the environmental protection requirements and ROHS standards, and are widely used in all kinds of digital character instruments and meters and industrial control displays.

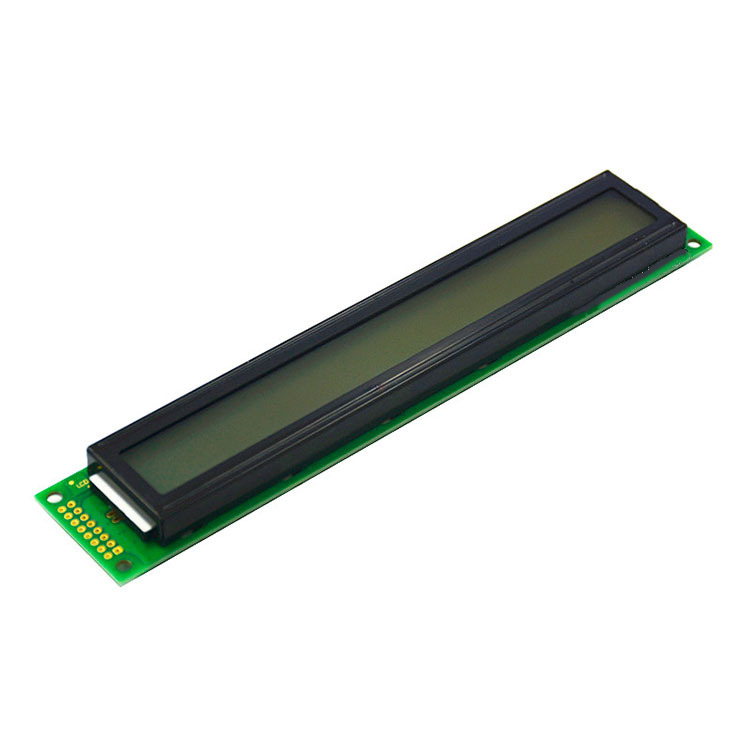

Product No.	40x2 character lcd module

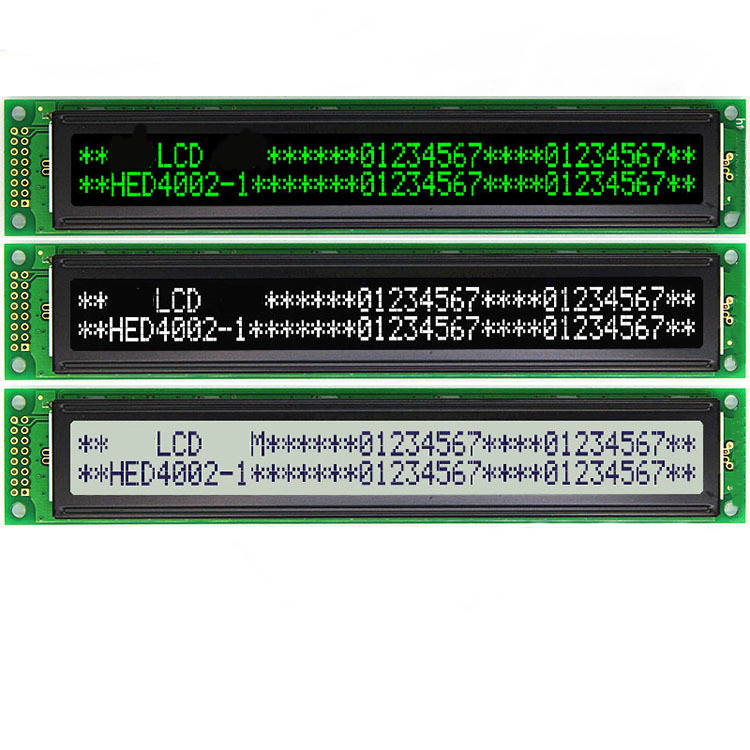

Module NO	HED4002-1B/HED4002-1YG
Display Type	STN(Y/G)/positive; STN(Blue)/Negative; FSTN(Grey)/positive; FSTN(Black)/Negative
LCD Polarizer Type	Transflective Or Transparent
Drive Method	1/16 Duty, 1/5Bias
Display Format	40 Characters x 2 Line

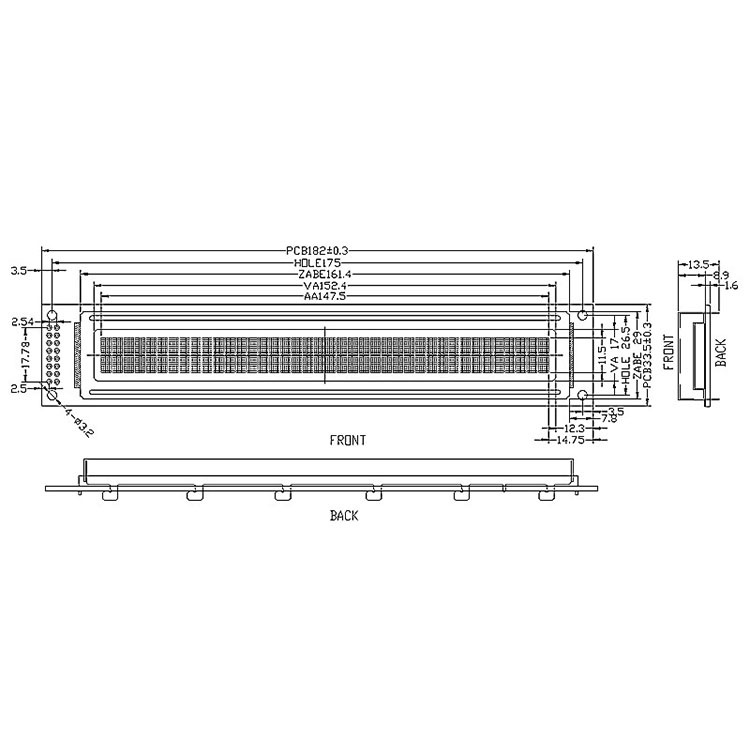

Module Size	182.0X33.5X13.6MM
Viewing Area	152.4X17.0MM
Operate Voltage	VDD=5.0V, VOP=4.5V (Optional 3.3V)
Viewing Direction	6:00 O'clock
Controller IC	AIP31066+AIP31065
Operating Temperature	-20~ +70 ℃
Storage Temperature	-30~ +80 ℃
Backlight type	White LED or Custom
