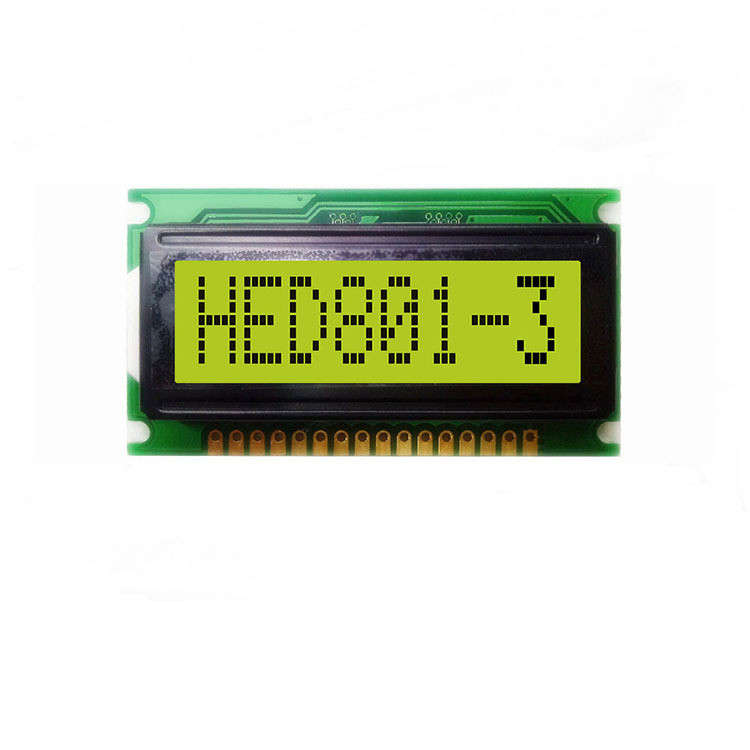

We produces and sells 8x1-40x4 monochrome character modules, including YG (yellow green mode), B (blue mode), FSTN(gray mode),DFSTN (black&white mode) and other display modes. You can choose Eglish,Japanese, Russian, European and other font SPI, parallel ports and I2C Iinterface modes.We accept the development and customization of dot matrix COB module products with different specifications. The products meet the environmental protection requirements and ROHS standards, and are widely used in all kinds of digital character instruments and meters and industrial control displays.
Module Size
60 (width) * 33 (high) *10.70(T)mm
Viewing Size
44 (width) * 13 (high) mm (V.A)
Active Area
40.83 (width) * 7.93 (high) mm (A.A)
Dot size:
0.83 (width) * 0.93 (high) mm
Point spacing
0.07 (width) * 0.07 (high) mm
Display type:
STN(Y/G)/positive; STN(Blue)/Negative;
FSTN(Grey)/positive; FSTN(Black)/Negative
Polarizer
Transflective
Best viewing angle
6 o'clock
Drive Mode
1/8 duty,1/4 bias
Controller IC
SPLC780B or Equivalent
Bonding mode
COB
Backlight type
Y/G LED; White LED OR Custom
Operating Temperature
-20℃ ~ +70℃
Storage Temperature
-30℃ ~ +80℃
Applications: electronic tags, handheld devices, security, industrial control equipment, medical display, communication equipment, instruments and meters
